前言

在上一节中讲到了NT头中的OptionalHeader结构，该结构在PE文件中是可选PE头。继续往下讲PE的一些其他结构以及作用。

节表

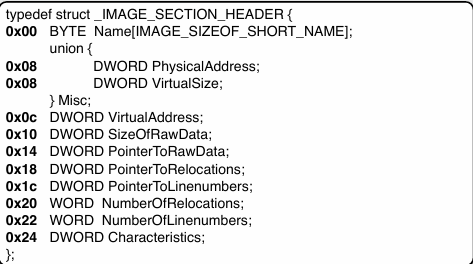

_IMAGE_SECTION_HEADER节表结构，该结构位与可选PE头之后。在整个PE文件中节表结构还是比较重要的，不管是对PE文件加壳还是加密都需要使用到节表结构。

遍历各个头信息

前置知识
在遍历PE信息之前，讲解一下PE文件在计算机上的状态和在内存中的状态，在计算机存盘中的时候是FileBuffer的状态，在内存中的时候是ImageBuffer状态。
使用fopen_s打开文件，fread_s读取文件，fseek用来控制FILE指针的位置

1	errno_t fopen_s( FILE** pFile, const char filename, const char mode );

1.pFile
执行文件指针的指针，保存文件的一些基本信息
2.filename
文件的名称
3.mode
打开格式,”rb”为只读模式
返回值
如果函数执行成功，返回0.

size_t fread_s(
   void *buffer,
   size_t bufferSize,
   size_t elementSize,
   size_t count,
   FILE *stream
);

1.buffer
数据的存储位置
2.bufferSize
buffer的大小，字节为单位
3.elementSize
读取数据的大小，字节为单位
4.count
读取多少数据的最大量
5.stream
返回FILE的指针
返回值
如果函数执行成功，返回0.

1	int fseek( FILE *stream, long offset, int origin );

1.stream
FILE指针
2.offset
偏移
3.origin
FILE初始位置
origin使用SEEK_END可以快速把指针移动到文件尾。
使用ftell函数获取当前指针位置。
origin使用SEEK_SET可以快速把指针移动到文件首。

#include<iostream>
#include<Windows.h>

using namespace std;

int main(int argc, char* argv[])
{
	// 打开文件
	FILE* p_file;
	errno_t fopen_result = fopen_s(&p_file, "D:\\source\\repos\\PE_Tools\\Release\\PE_Tools.exe", "rb");
	if (fopen_result || p_file == nullptr)
	{
		return ERROR;
	}

	// 获取文件大小
	fseek(p_file, 0, SEEK_END);
	long fileSize = ftell(p_file);
	fseek(p_file, 0, SEEK_SET);

	// 读取文件
	DWORD* fileBuffer = (DWORD*)malloc(fileSize);
	if (fileBuffer == NULL)
	{
		return ERROR;
	}
	memset(fileBuffer, 0, fileSize);
	size_t fread_result = fread_s(fileBuffer, fileSize, 1, fileSize, p_file);


	return 0;
}

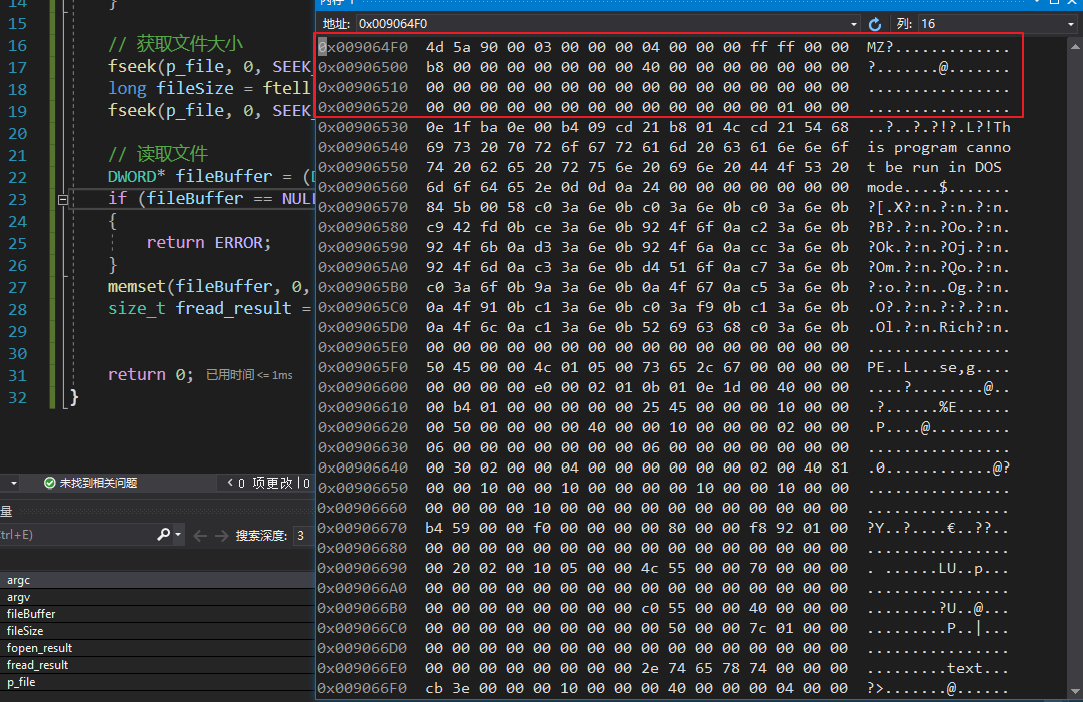

在最后return处下一个断点观察fileBuffer的数据。

可以发现这些数据与在010中看到的一致，接下来就是使用结构体去给这些数据分配个各个属性了。
PIMAGE_DOS_HEADER结构体，在winnt.h中定义，是Windows提供好的。

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

// 遍历DOS头
void PrintDosHeader(const IMAGE_DOS_HEADER* dosHeader) {
	printf("e_magic: 0x%X\n", dosHeader->e_magic);
	printf("e_cblp: %x\n", dosHeader->e_cblp);
	printf("e_cp: %x\n", dosHeader->e_cp);
	printf("e_crlc: %x\n", dosHeader->e_crlc);
	printf("e_cparhdr: %x\n", dosHeader->e_cparhdr);
	printf("e_minalloc: %x\n", dosHeader->e_minalloc);
	printf("e_maxalloc: %x\n", dosHeader->e_maxalloc);
	printf("e_ss: 0x%X\n", dosHeader->e_ss);
	printf("e_sp: 0x%X\n", dosHeader->e_sp);
	printf("e_csum: 0x%X\n", dosHeader->e_csum);
	printf("e_ip: 0x%X\n", dosHeader->e_ip);
	printf("e_cs: 0x%X\n", dosHeader->e_cs);
	printf("e_lfarlc: 0x%X\n", dosHeader->e_lfarlc);
	printf("e_ovno: 0x%X\n", dosHeader->e_ovno);
	printf("e_res[4]: {%x, %x, %x, %x}\n", dosHeader->e_res[0], dosHeader->e_res[1], dosHeader->e_res[2], dosHeader->e_res[3]);
	printf("e_oemid: 0x%X\n", dosHeader->e_oemid);
	printf("e_oeminfo: 0x%X\n", dosHeader->e_oeminfo);
	printf("e_res2[10]: {...}%x:\n",dosHeader->e_res2[0]); // 没有写完

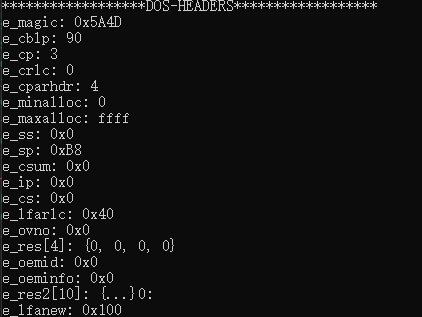

	printf("e_lfanew: 0x%X\n", dosHeader->e_lfanew);
}

NT-Header

NT定位
在NT头和DOS中间由一个DOS存根数据，这个数据是我们不需要的，定位NT头需要使用到DOS头的最后一个变量，该变量表示NT头在文件中开始的位置，例如e_lfanew值为0x100，那么表示了NT头在文件中的位置就是0x100处。
这样我们使用fileBuffer加上e_lfanew就可以定位到NT头了。
PS:在使用指针加法运算的时候要注意指针的数据类型，当指针的数据类型为DWORD的时候，指针+1实际上是加了4个字节。

FILE_HEADER

FILE-HEADER是属于NT头的成员变量，只不过他也是一个结构体，定位FILE-HEADER有两个方法：
1.直接在NT头中使用取地址符号&获取到FILE-HEADER的地址。
2.使用FileBuffer+e_lfanew+sizeof(Signature) 的值定位到FILE-HEADER。
使用第二种方式定位FILE-HEADER特别容易忽略掉NT头中的Signature变量，导致定位不正确。

// NT头
PIMAGE_NT_HEADERS nt_headers = (PIMAGE_NT_HEADERS)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew);
// 标准PE头
PIMAGE_FILE_HEADER file_headers = (PIMAGE_FILE_HEADER)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew + sizeof(DWORD));
//PIMAGE_FILE_HEADER file_headers_two = (PIMAGE_FILE_HEADER)&nt_headers->FileHeader;
// 遍历标准PE头
PrintfFileHeader(file_headers);

void PrintfFileHeader(const PIMAGE_FILE_HEADER FileHeader) {
	printf("FILE_HEADER:\n");
	printf("Machine: 0x%X\n", FileHeader->Machine);
	printf("NumberOfSections: %x\n", FileHeader->NumberOfSections);
	printf("TimeDateStamp: 0x%X\n", FileHeader->TimeDateStamp);
	printf("PointerToSymbolTable: 0x%X\n", FileHeader->PointerToSymbolTable);
	printf("NumberOfSymbols: %d\n", FileHeader->NumberOfSymbols);
	printf("SizeOfOptionalHeader: %x\n", FileHeader->SizeOfOptionalHeader);

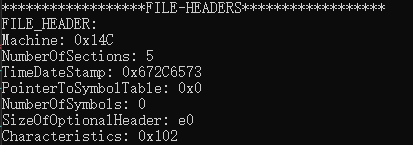

	printf("Characteristics: 0x%X\n", FileHeader->Characteristics);
}

OPTIONAL_HEADER

OPTIONAL_HEADER的定位，在FILE_HEADER的基础上加上FILE_HEADER的大小；或者直接从NT中获取到OPTIONAL_HEADER的地址。

// 遍历可选PE头
//PIMAGE_OPTIONAL_HEADER option_headers = (PIMAGE_OPTIONAL_HEADER)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER));
	PIMAGE_OPTIONAL_HEADER option_headers_two = (PIMAGE_OPTIONAL_HEADER)&nt_headers->OptionalHeader;
	PrintfOptionHeader(option_headers_two);

void PrintfOptionHeader(const PIMAGE_OPTIONAL_HEADER OptionalHeader) {
	printf("OPTIONAL_HEADER:\n");
	printf("Magic: %X\n", OptionalHeader->Magic);
	printf("MajorLinkerVersion: %d\n", OptionalHeader->MajorLinkerVersion);
	printf("MinorLinkerVersion: %d\n", OptionalHeader->MinorLinkerVersion);
	printf("SizeOfCode: %X\n", OptionalHeader->SizeOfCode);
	printf("SizeOfInitializedData: %X\n", OptionalHeader->SizeOfInitializedData);
	printf("SizeOfUninitializedData: %X\n", OptionalHeader->SizeOfUninitializedData);
	printf("AddressOfEntryPoint: %X\n", OptionalHeader->AddressOfEntryPoint);
	printf("BaseOfCode: %X\n", OptionalHeader->BaseOfCode);
	printf("ImageBase: %X\n", OptionalHeader->ImageBase);
	printf("SectionAlignment: %X\n", OptionalHeader->SectionAlignment);
	printf("FileAlignment: %X\n", OptionalHeader->FileAlignment);
	printf("MajorOperatingSystemVersion: %d\n", OptionalHeader->MajorOperatingSystemVersion);
	printf("MinorOperatingSystemVersion: %d\n", OptionalHeader->MinorOperatingSystemVersion);
	printf("MajorImageVersion: %d\n", OptionalHeader->MajorImageVersion);
	printf("MinorImageVersion: %d\n", OptionalHeader->MinorImageVersion);
	printf("MajorSubsystemVersion: %d\n", OptionalHeader->MajorSubsystemVersion);
	printf("MinorSubsystemVersion: %d\n", OptionalHeader->MinorSubsystemVersion);
	printf("Win32VersionValue: %X\n", OptionalHeader->Win32VersionValue);
	printf("SizeOfImage: %X\n", OptionalHeader->SizeOfImage);
	printf("SizeOfHeaders: %X\n", OptionalHeader->SizeOfHeaders);
	printf("CheckSum: %X\n", OptionalHeader->CheckSum);
	printf("Subsystem: %X\n", OptionalHeader->Subsystem);
	printf("DllCharacteristics: %x\n", OptionalHeader->DllCharacteristics);
	printf("SizeOfStackReserve: %x\n", OptionalHeader->SizeOfStackReserve);
	printf("SizeOfStackCommit: %X\n", OptionalHeader->SizeOfStackCommit);
	printf("SizeOfHeapReserve: %X\n", OptionalHeader->SizeOfHeapReserve);
	printf("SizeOfHeapCommit: %X\n", OptionalHeader->SizeOfHeapCommit);
	printf("LoaderFlags: %X\n", OptionalHeader->LoaderFlags);

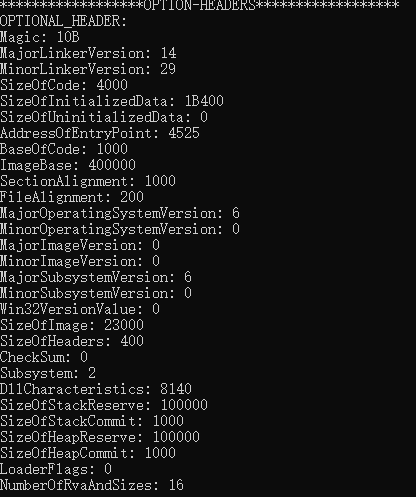

	printf("NumberOfRvaAndSizes: %d\n", OptionalHeader->NumberOfRvaAndSizes);
}

完整代码

#include<iostream>
#include<Windows.h>

using namespace std;


void PrintDosHeader(const IMAGE_DOS_HEADER* dosHeader) {
	printf("e_magic: 0x%X\n", dosHeader->e_magic);
	printf("e_cblp: %x\n", dosHeader->e_cblp);
	printf("e_cp: %x\n", dosHeader->e_cp);
	printf("e_crlc: %x\n", dosHeader->e_crlc);
	printf("e_cparhdr: %x\n", dosHeader->e_cparhdr);
	printf("e_minalloc: %x\n", dosHeader->e_minalloc);
	printf("e_maxalloc: %x\n", dosHeader->e_maxalloc);
	printf("e_ss: 0x%X\n", dosHeader->e_ss);
	printf("e_sp: 0x%X\n", dosHeader->e_sp);
	printf("e_csum: 0x%X\n", dosHeader->e_csum);
	printf("e_ip: 0x%X\n", dosHeader->e_ip);
	printf("e_cs: 0x%X\n", dosHeader->e_cs);
	printf("e_lfarlc: 0x%X\n", dosHeader->e_lfarlc);
	printf("e_ovno: 0x%X\n", dosHeader->e_ovno);
	printf("e_res[4]: {%x, %x, %x, %x}\n", dosHeader->e_res[0], dosHeader->e_res[1], dosHeader->e_res[2], dosHeader->e_res[3]);
	printf("e_oemid: 0x%X\n", dosHeader->e_oemid);
	printf("e_oeminfo: 0x%X\n", dosHeader->e_oeminfo);
	printf("e_res2[10]: {...}%x:\n",dosHeader->e_res2[0]); // 没有写完
	printf("e_lfanew: 0x%X\n", dosHeader->e_lfanew);
}

void PrintfFileHeader(const PIMAGE_FILE_HEADER FileHeader) {
	printf("FILE_HEADER:\n");
	printf("Machine: 0x%X\n", FileHeader->Machine);
	printf("NumberOfSections: %x\n", FileHeader->NumberOfSections);
	printf("TimeDateStamp: 0x%X\n", FileHeader->TimeDateStamp);
	printf("PointerToSymbolTable: 0x%X\n", FileHeader->PointerToSymbolTable);
	printf("NumberOfSymbols: %d\n", FileHeader->NumberOfSymbols);
	printf("SizeOfOptionalHeader: %x\n", FileHeader->SizeOfOptionalHeader);
	printf("Characteristics: 0x%X\n", FileHeader->Characteristics);
}


void PrintfOptionHeader(const PIMAGE_OPTIONAL_HEADER OptionalHeader) {
	printf("OPTIONAL_HEADER:\n");
	printf("Magic: %X\n", OptionalHeader->Magic);
	printf("MajorLinkerVersion: %d\n", OptionalHeader->MajorLinkerVersion);
	printf("MinorLinkerVersion: %d\n", OptionalHeader->MinorLinkerVersion);
	printf("SizeOfCode: %X\n", OptionalHeader->SizeOfCode);
	printf("SizeOfInitializedData: %X\n", OptionalHeader->SizeOfInitializedData);
	printf("SizeOfUninitializedData: %X\n", OptionalHeader->SizeOfUninitializedData);
	printf("AddressOfEntryPoint: %X\n", OptionalHeader->AddressOfEntryPoint);
	printf("BaseOfCode: %X\n", OptionalHeader->BaseOfCode);
	printf("ImageBase: %X\n", OptionalHeader->ImageBase);
	printf("SectionAlignment: %X\n", OptionalHeader->SectionAlignment);
	printf("FileAlignment: %X\n", OptionalHeader->FileAlignment);
	printf("MajorOperatingSystemVersion: %d\n", OptionalHeader->MajorOperatingSystemVersion);
	printf("MinorOperatingSystemVersion: %d\n", OptionalHeader->MinorOperatingSystemVersion);
	printf("MajorImageVersion: %d\n", OptionalHeader->MajorImageVersion);
	printf("MinorImageVersion: %d\n", OptionalHeader->MinorImageVersion);
	printf("MajorSubsystemVersion: %d\n", OptionalHeader->MajorSubsystemVersion);
	printf("MinorSubsystemVersion: %d\n", OptionalHeader->MinorSubsystemVersion);
	printf("Win32VersionValue: %X\n", OptionalHeader->Win32VersionValue);
	printf("SizeOfImage: %X\n", OptionalHeader->SizeOfImage);
	printf("SizeOfHeaders: %X\n", OptionalHeader->SizeOfHeaders);
	printf("CheckSum: %X\n", OptionalHeader->CheckSum);
	printf("Subsystem: %X\n", OptionalHeader->Subsystem);
	printf("DllCharacteristics: %x\n", OptionalHeader->DllCharacteristics);
	printf("SizeOfStackReserve: %x\n", OptionalHeader->SizeOfStackReserve);
	printf("SizeOfStackCommit: %X\n", OptionalHeader->SizeOfStackCommit);
	printf("SizeOfHeapReserve: %X\n", OptionalHeader->SizeOfHeapReserve);
	printf("SizeOfHeapCommit: %X\n", OptionalHeader->SizeOfHeapCommit);
	printf("LoaderFlags: %X\n", OptionalHeader->LoaderFlags);
	printf("NumberOfRvaAndSizes: %d\n", OptionalHeader->NumberOfRvaAndSizes);
}

int main(int argc, char* argv[])
{
	// 打开文件
	FILE* p_file;
	errno_t fopen_result = fopen_s(&p_file, "D:\\source\\repos\\PE_Tools\\Release\\PE_Tools.exe", "rb");
	if (fopen_result || p_file == nullptr)
	{
		return ERROR;
	}

	// 获取文件大小
	fseek(p_file, 0, SEEK_END);
	long fileSize = ftell(p_file);
	fseek(p_file, 0, SEEK_SET);

	// 读取文件
	DWORD* fileBuffer = (DWORD*)malloc(fileSize);
	if (fileBuffer == NULL)
	{
		return ERROR;
	}
	memset(fileBuffer, 0, fileSize);
	size_t fread_result = fread_s(fileBuffer, fileSize, 1, fileSize, p_file);

	// 遍历DOS头
	printf("******************DOS-HEADERS******************\n");
	PIMAGE_DOS_HEADER dos_headers = (PIMAGE_DOS_HEADER)fileBuffer;
	PrintDosHeader(dos_headers);

	printf("******************FILE-HEADERS******************\n");

	// NT头
	PIMAGE_NT_HEADERS nt_headers = (PIMAGE_NT_HEADERS)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew);
	// 标准PE头
	PIMAGE_FILE_HEADER file_headers = (PIMAGE_FILE_HEADER)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew + sizeof(DWORD));
	//PIMAGE_FILE_HEADER file_headers_two = (PIMAGE_FILE_HEADER)&nt_headers->FileHeader;

	// 遍历标准PE头
	PrintfFileHeader(file_headers);

	printf("******************OPTION-HEADERS******************\n");

	// 遍历可选PE头
	//PIMAGE_OPTIONAL_HEADER option_headers = (PIMAGE_OPTIONAL_HEADER)(DWORD*)((BYTE*)fileBuffer + dos_headers->e_lfanew + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER));
	PIMAGE_OPTIONAL_HEADER option_headers_two = (PIMAGE_OPTIONAL_HEADER)&nt_headers->OptionalHeader;
	PrintfOptionHeader(option_headers_two);

	return 0;
}

前言

节表

遍历各个头信息

DOS—Header

NT-Header

FILE_HEADER

OPTIONAL_HEADER

完整代码
